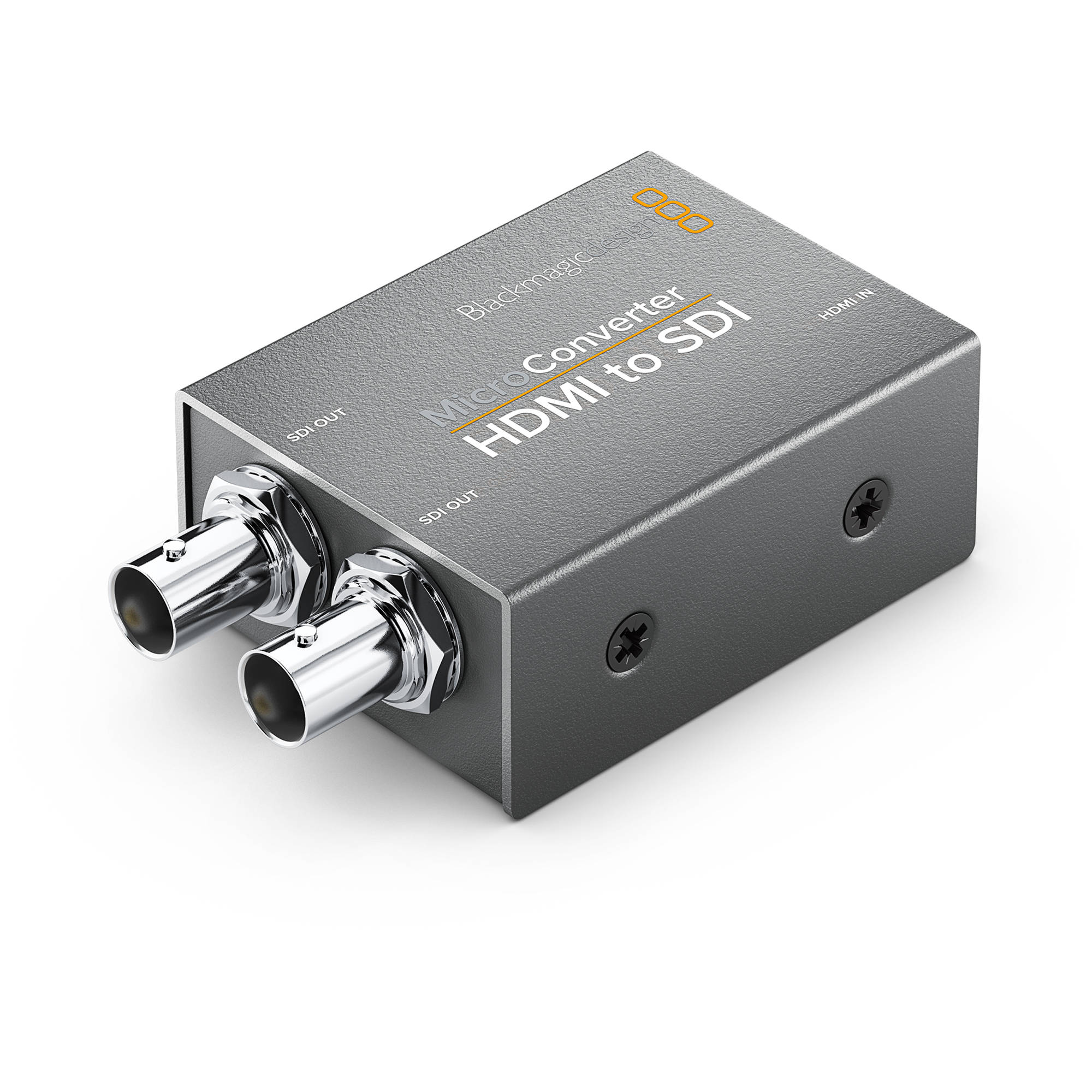

Blackmagic Design HDMI to SDI micro converter
SKU:
MYR 30.00
MYR 30.00
per item
Product Highlights
- SD/HD/3G-SDI Input
- HDMI and SDI Loop Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
Blackmagic Design CONVCMIC/SH/WPSU Specs
I/O1 x SD/HD/3G-SDI BNC input
1 x SD/HD/3G-SDI BNC loop output
1 x HDMI type A output
1 x USB Micro-BFormat Support1080p24/25/29.97/30/50/59.94
1080PsF25/29.97/30
1080i50/59.94/60
720p50/59.94/60
NTSC
PALSDI ComplianceSMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425MColor Precision4:2:2Color SpaceYUV and RGBOS SupportMac OS X 10.10, 10.11 or later
Windows 8.1, 10PowerPower input: 5 VDC via USB Micro-B
Power consumption: 1.6 W
Operational voltage range: 4.4 to 5.25 VDCEnvironmentalOperating temperature: 32 to 104°F / 0 to 40°C
Storage temperature: -4 to 140°F / -20 to 60°C
Relative humidity: 0 to 90% non-condensingDimensions3 x 1.8 x 1" / 76 x 46 x 25 mmWeight5.3 oz / 150 g
